Resetting the security code

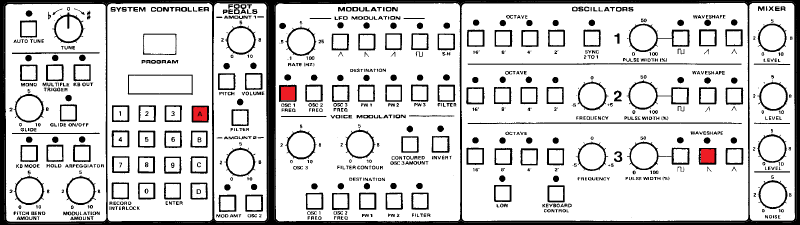

  • To reset the security code to 0000 press the A button, OSC1 FREQ button in the LFO modulation section, and the sawtooth waveform button for oscillator 3 simultaneously. Please reference the image below.

Click on image for larger version


Enabling/disabling memory writes
  • Press the C button followed by 8 and ENTER.
  • The display will show the current state, either ENABLED or DISABLED.
  • Enter your four digit security code to change state.
Changing the security code
  • Press the C button followed by 8 and ENTER, then C again.
  • The display will read OLD CODE.
  • Enter the old four digit security code and press ENTER.
  • The display will now read NEW CODE.
  • Enter the new four digit security code and press ENTER.
Note: I recommend leaving the security code 0000.
